Summary:
Most popular chip set - SiRF.
Smallest modules - SyChip GPS2020, 13x15x3.8; Trimble M-Loc MPM, 25x25x6.5 and Fastrax iTRAX02, 26x26x6.5.
Smallest module with integrated antenna - Axiom Swift A1, 41x41x11.
External boxes available with integrated antennas or separate and with USB or RS-232 interfaces.
Available as both PCMCIA and Compact Flash cards.
Bright idea - Axiom/Airbiquity, GPS built-in to 1.4Ah standard Li-Ion cell phone battery.
Chip Sets Top
CompanyProductPictureDims.
mm		Wt.
gm		Sup/Curr.
V/mA
Analog DevicesNAV 2300 chipset. ADSSTRF2000 RF Down converter
ADSST NAV 2300 based Correlator and Navigation Processor
BethelTronix, Inc.
(Link not working but still on Google)		BT1575 RF front end QLP32 2.4-3/
Conexant (Rockwell)
Have sold their gps IP to SiRF		Zodiac 2000 chip set Scorpio Baseband Processor and Monopac RF front end
or CX74010 RF front end or CX76502 RF MCM
CX11239 optional HW accelerator		 Monopac: PQFP80
EverMoreBBP1202 baseband processorTQFP100 3.3/
Javad Navigation SystemsParadigm chip
40 chan. GPS/GLONASS
Magellan
part of THALES Navigation		G10 gps chip - no longer made   3.3/115
Motorola MG2000 Mixed mode GPS RF down-converter and 12-channel digital correlatorBGA64 2.7-3.6/20
GPS chip set. MRFIC1504 RF front end
MMC2003 controller		 LQFP48
LQFP144		 2.7-3.3/27
3-3.6/
ParthusNavStream platform HW and SW 24x40x10
LQFP		 3/
3/
Phillips SemiconductorsUAA1570HL RF Front End
SAA1575HL Baseband Processor (8 chan. only)
SAF1576 single chip gps.		LQFP48
LQFP100		 2.7-5/60
3-5/50
SAF1576 single chip gps.QUAD-44 3/?
RF Micro Devices, Inc.RF2460 LNA/Mixer, EGR-X001, ACS-X001 transceivers
SiRFSiRFstarI GSP 1/LX custom signal processing engine, GRF1/LX front end, GSW1/LX SW.GRF1: LQFP32,
GSP1: LQFP100
BGA144		 3.3/150
SiRFstarII GSP2e digital section, GRF2i RF front end, GSW2e SW.GRF2i:
LQFP48
LPCC32,
GSP2e:
TQFP100
BGA144,160
LQFP144		 3/160
SiRFstarIIt ext. host, GSP2t digital section, GRF2i RF front end, SiRFNav SW.GRF2i:
LQFP48
GSP2t:
LQFP48		 3/57
Sony SemiconductorCXA1951AQ RF front end
CXD2931R baseband processor		 QFP40
LQFP144		 2.7-5.5/30
3-3.6/55
STMicroelectronicsSTB5600 RF Front End
ST20-GP6 Baseband Processor		TQFP32
PQFP100		 3.3-5.9/35
3.3/45
TrimbleFirstGPS (Infineon based)
IO - PMB 2500 Baseband Correlator
Colossus -- PMB 3330 RF Front-end		TSSOP28
TSSOP24		 3.3/2.5
2.7/8
Valence SemiconductorVS7001 gps front endTQFP48 2.7-3.3/14
Zarlink SemiconductorGP2015 RF Front End
GP4020 Baseband Processor		TQFP48
LQFP100		 3-5/70
3.3/100
Modules Top
CompanyProductPictureDims.
mm		Wt.
gm		Sup/Iidle
V/mA
AirbiquityGPS accessory combined battery/gps for cell. phones (SiRF based)103x46x19773.7/1.4Ah LiIon
Analog DevicesNAV-2300 GPS receiver board 50x40x12 3.3/180
Ashtech (part of Magellan)G8 oem receiver (8 chan. only)
(Phillips based)		39x60x10.4205/140
G12 oem receiver108x57x?805/360
Axiom Navigation Inc.Swift A2 oem GPS receiver (SiRF based)
integrated ceramic patch antenna		42x42x423.3/150
Swift B2 oem GPS receiver (SiRF based)25x32x78.53.3/150
Sandpiper oem GPS receivers (SiRF based)
CMC Electronics Inc.SUPERSTAR II gps oem receiver46x71x13 3.3/150
Conexant (Rockwell)TU70-D100 GPS sensor board
integrated patch antenna		 61x54x14.5 3.3/
Jupiter receiver boards 71x41x11253.3,5/130
EMTACCrux II GPS engine D154N (SiRF based)41x52x? 3.3,5/160
EverMoreGM-X205 oem module w/antenna55x40x201153.8-8/105
EB-X305 oem module70x40x10203.3/130
FastraxiTRAX02 GPS receiver26x26x442.7-3.3/37
GarminGPS 25 Series gps engine46.5x70x11.4383.6-6/115

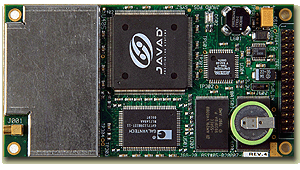

Javad Navigation SystemsJGG20 GPS, INMARSAT, WAAS, and GLONASS108x57x16754-14/500
Laipac TechTF10 receiver module (SiRF based)42x72x12233.3,5/180
TF 30 receiver module (SiRF based)30x40x7 3.3/140
TF 50 GPS and GLONASS module71x51x12513.3/180
UV-40 16-chan. receiver module   3.3/?
MotorolaM12 Oncore GPS Receiver40x60x10252.7-3.2/75
SL Oncore GPS Receiver
(8 chan. only)		40x80x12.2225/150
GT Plus Oncore GPS Receiver
(8 chan. only)		51x83x16.3515/150
RF Micro Devices, Inc.RF8000 12-ch. module 38x38x9.8 3.3/100
RojoneGenius 3 (SiRF based) integrated antenna66x66x7 5/180
Genius 4 (SiRF based)66x66x7 5/180
Micro Genius 340x35x10?3.3/160
RoyalTekREB-12R Series gps engine (SiRF based)41x71x11.5193.3(5)/180

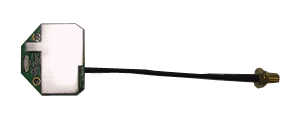

REB-2101 gps board (SiRF based)40x36x88.63.3/170
RGM-3000 gps board (SiRF based)21x28x13153.3/170
Sena GPS SAAlbatros OEM gps receiver (SiRF based)11x29.5x3893.3(5)/135
Proteus OEM gps receiver (Mitel based)50x120x19679-32/220
Sigtec Navigation Pty LtdMG5001 OEM GPS Receiver66x47x12 3.3/150
autoNAV MG5002 - Designed for applications where an external microprocessor has spare processing power available.
cellNAV MG5003 - Designed for use in cellphones.
microNAV MG5004 - General purpose, optimised for small size
Sony SemiconductorGXB2100 Module 36.5x25x?5.73.3/?
GXB3000 Module??3.3/?
GXB3100 Module??3.3/?
SyChipGPS2020 receiver module (SiRF based)13x15x3.8?3.3/145
TrimbleLassen SK-II gps module83x31x10.219.65/95
Lassen LP gps module66x32x1212.53.3/55
Lassen SQ gps module26x26x65.73.3/30
M-Loc MPM gps module25x25x6.55.73.3/10.5
u-bloxTIM gps module (SiRF based)25x25x333.3/140
GPS-MS1E gps module (SiRF based)30x30x7.783.3/140
GPS-PS1E gps module (SiRF based)32x82x7.7135/140
Valence SemiconductorVS7001-REF 3B/3D ref. module   3.3/?
Boxes Top
CompanyProductPictureDims.
mm		Wt.
gm		Sup/Iidle
V/mA
Axiom Navigation Inc.GPS Smart Antenna (SiRF based)
Receiver/Antenna Combination		62x49x16.6 3.3-5/150
Conexant (Rockwell)TU70-D200 GPS sensor module
serial or USB
integrated patch antenna		84x91x22.5 3.6-10/120
EMTACCRUX II BTGPS GPS+BT53x94x16 5/?
GarminGPS 35 TracPak56x96x271106-40/80
GPS 16, GPS 17N, GPS 36
Laipac TechG10 RS232/USB Compact GPS Receiver 100x54x291855/200
G30-L RS232/USB Compact GPS Receiver 66x50x25.5855/60
PowerLOC Technologies Inc.Vehicle Location Device (VLD)
Personal Location Device (PLD)
Asset Location Device (ALD)
Rayming Corp.TN-100 USB box (SiRF based)72x42x12 5/180
RojoneGenius 1 (SiRF based) integrated antenna74x74x19 2-5/180
RoyalTekRGM-210138x38x15253.3/170
Sapphire GPS Mouse100x68x291809-16,5/180
Car Locator GPS+GSM140x122x37 9.6-32/800
SecuraTrak Inc.SecuraTrak Pro GPS+Cellular127x89x38 12-15/2000
PCMCIA Top
CompanyProductPictureDims.
mm		Wt.
gm		Sup/Iidle
V/mA
EMTACD152N PCMCIA GPS ReceiverType II 3,5/160
Teletype GPSGPS WorldNavigator PCMCIA GPS ReceiverType II303,5/160
CF Top
CompanyProductPictureDims.
mm		Wt.
gm		Sup/Iidle
V/mA
agis Pte LtdCF Type I103x48x23603.3/180
EMTACD157N CFType I 3,3/160
Laipac TechTF30 CF GPS Receiver 88x48x24453.3/60

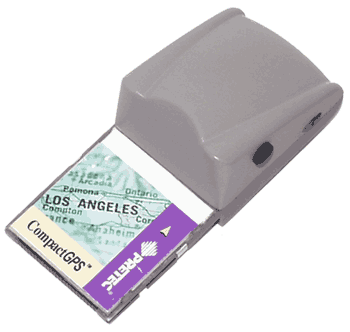

RoyalTekRGP-2202 CF Type II43x93x29603.3/190
SyChipGPS2020-based CF Type I   ?
Assisted GPS Top
CompanyProductPictureDims.
mm		Wt.
gm		Sup/Iidle
V/mA
SnapTrack, Inc.SnapCore multimode GPS core for wireless devices
WCDMA/GSM/GPRS WAG solutions
MGP6200 Multimode GPS Processor		TQFP128 3.3/
Non GPS Location Methods Top
CompanyProductPictureDims.
mm		Wt.
gm		Sup/Iidle
V/mA
Analog DevicesAccelerometers/iMEMS
